Full Description

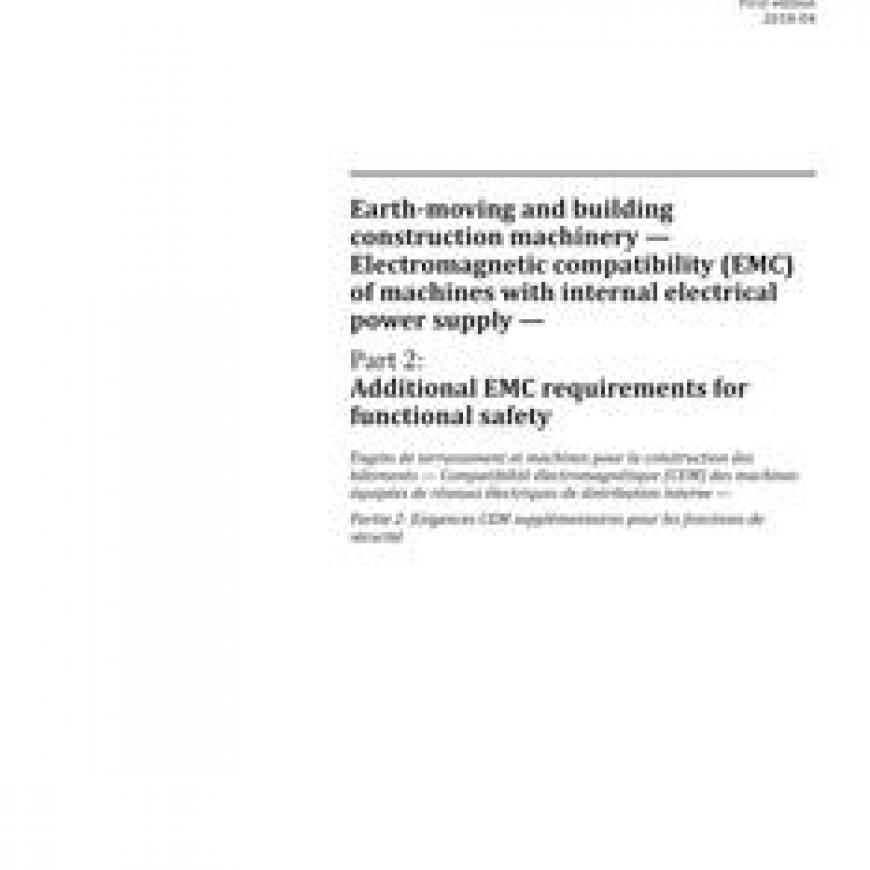

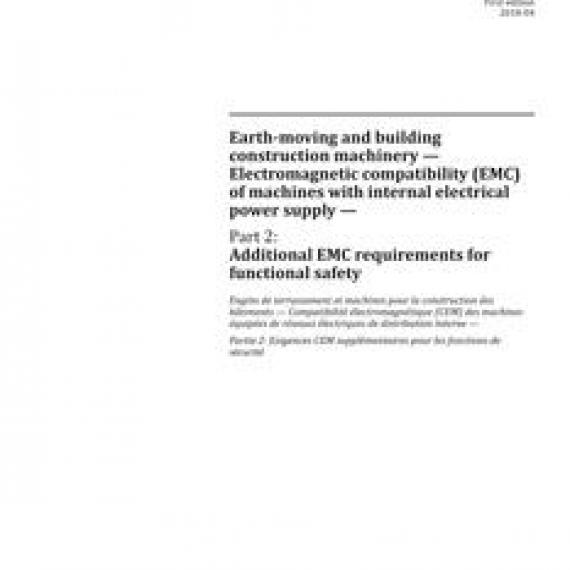

ISO 13766-2:2018 provides test methods and acceptance criteria for the evaluation of the electromagnetic compatibility (EMC) of earth-moving machinery, as defined in ISO 6165:2012, and of the following building construction machinery as classified in ISO/TR 12603:2010:

- drilling and foundation equipment;

- equipment used for the preparation, conveyance and compaction of concrete, mortar and processing reinforcement;

- road construction and maintenance machinery and equipment.

ISO 13766-2:2018 deals with EMC requirements related to the functional safety of the machinery, its electrical/electronic subassemblies (ESA) and of separate ESA.

ISO 13766-2:2018 is relevant only to the safety-related parts of control systems (SRP/CS) as defined in ISO 13849-1:2015 using electrical/electronic components which meet design requirements equal to or greater than safety-related performance level PL b as defined in ISO 13849-1:2015. It also deals with electrical and electronic components or separate ESA intended to be fitted on machinery under the restriction of PL b. The following electromagnetic disturbance phenomena are evaluated:

- radiated electromagnetic fields from off-board sources with various field strengths and frequencies;

- radiated electromagnetic fields from on-board sources (antenna inside/outside) with various field strengths and frequencies;

- electrostatic discharge;

- conducted and coupled electrical transients.

The machinery can have DC or AC or a combination of both as the internal electrical power supply system.

ISO 13766-2:2018 is not applicable to machines that are designed to be supplied by an external mains network or to phenomena caused by military applications.

NOTE Grid-connected machines are covered by IEC 61000.
