ISO 128-33:2018

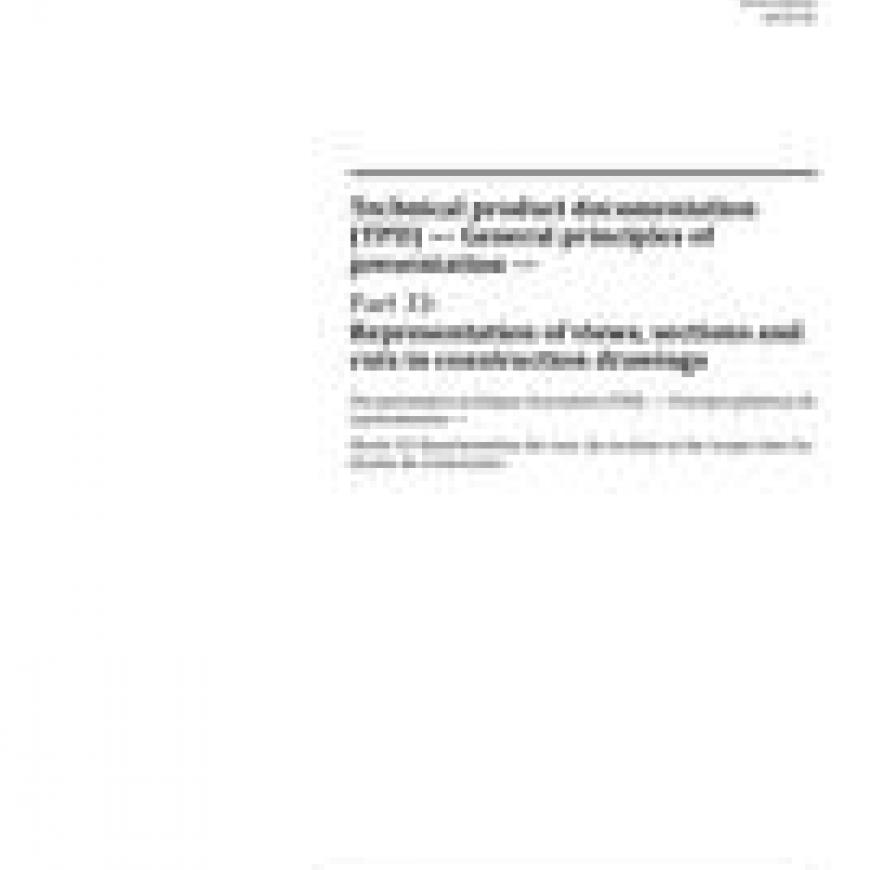

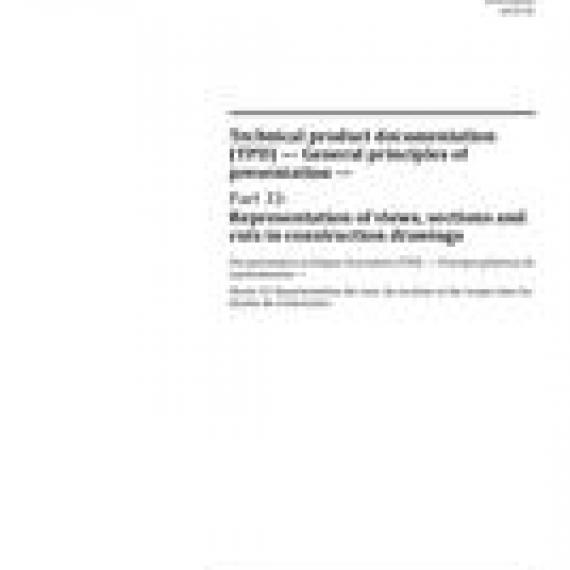

ISO 128-33:2018 Technical product documentation (TPD) - General principles of presentation - Part 33: Representation of views, sections and cuts in construction drawings
standard by International Organization for Standardization, 02/01/2018
Reduced price!
M00051787
New product
Full Description
ISO 128-33:2018 lays down general rules for marking, designation, placing and orientation of views, sections and cuts, and the position of text in relation to figures on construction drawings.
For all general rules, reference is made to the relevant parts of the ISO 128 series. As regards relative positions of views, the method using reference arrows according to ISO 128-30 is used.
