Full Description

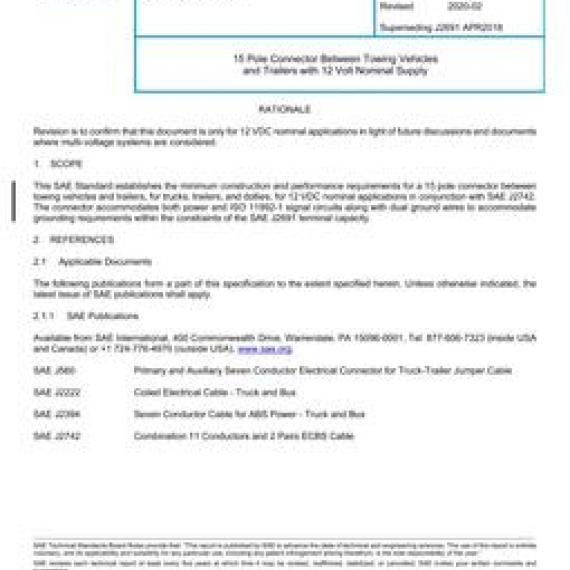

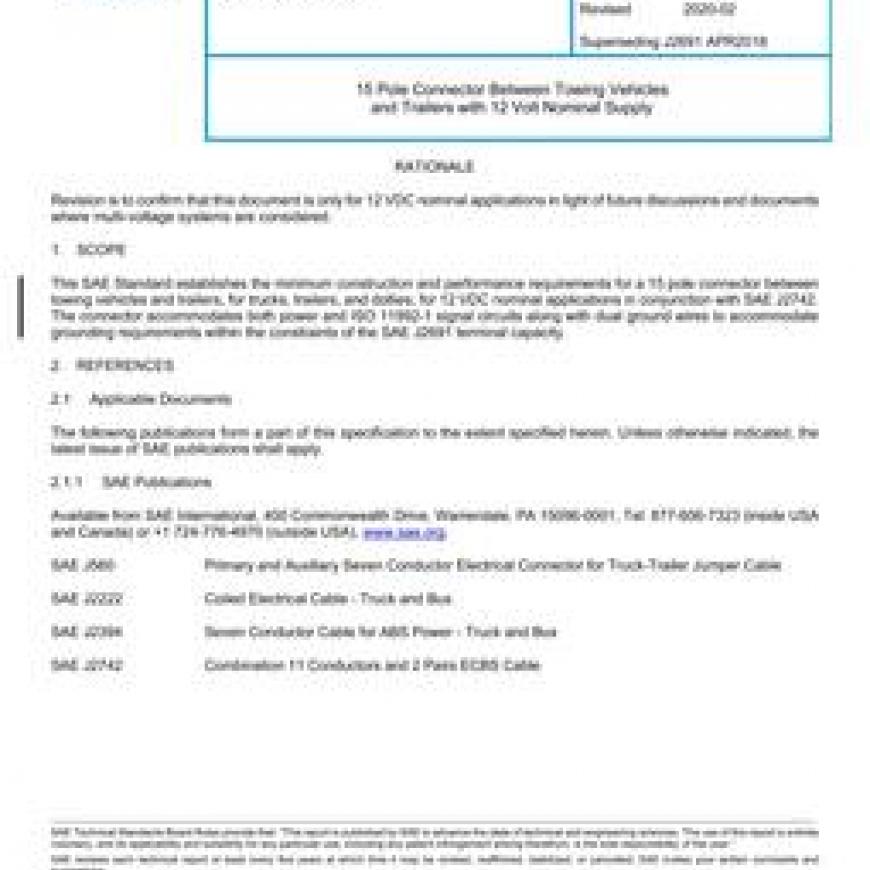

This SAE Standard establishes the minimum construction and performance requirements for a 15 pole connector between towing vehicles and trailers, for trucks, trailers, and dollies, for 12 VDC nominal applications in conjunction with SAE J2742. The connector accommodates both power and ISO 11992-1 signal circuits along with dual ground wires to accommodate grounding requirements within the constraints of the SAE J2691 terminal capacity.

Product Details

Published: 02/25/2020 Number of Pages: 8 File Size: 1 file , 260 KB Redline File Size: 2 files , 3.5 MB
