Full Description

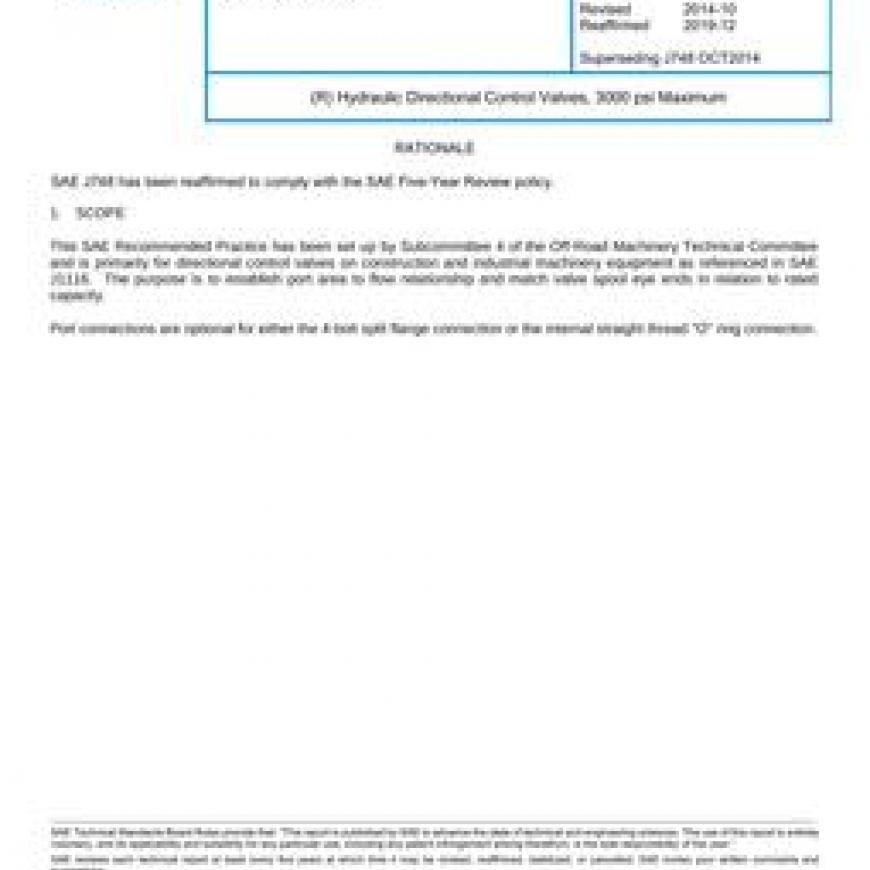

This SAE Recommended Practice has been set up by Subcommittee 4 of the Off-Road Machinery Technical Committee and is primarily for directional control valves on construction and industrial machinery equipment as referenced in SAE J1116. The purpose is to establish port area to flow relationship and match valve spool eye ends in relation to rated capacity. Port connections are optional for either the 4-bolt split flange connection or the internal straight thread "O" ring connection.

Product Details

Published: 12/04/2019 Number of Pages: 3 File Size: 1 file , 700 KB Redline File Size: 2 files , 3 MB
