Full Description

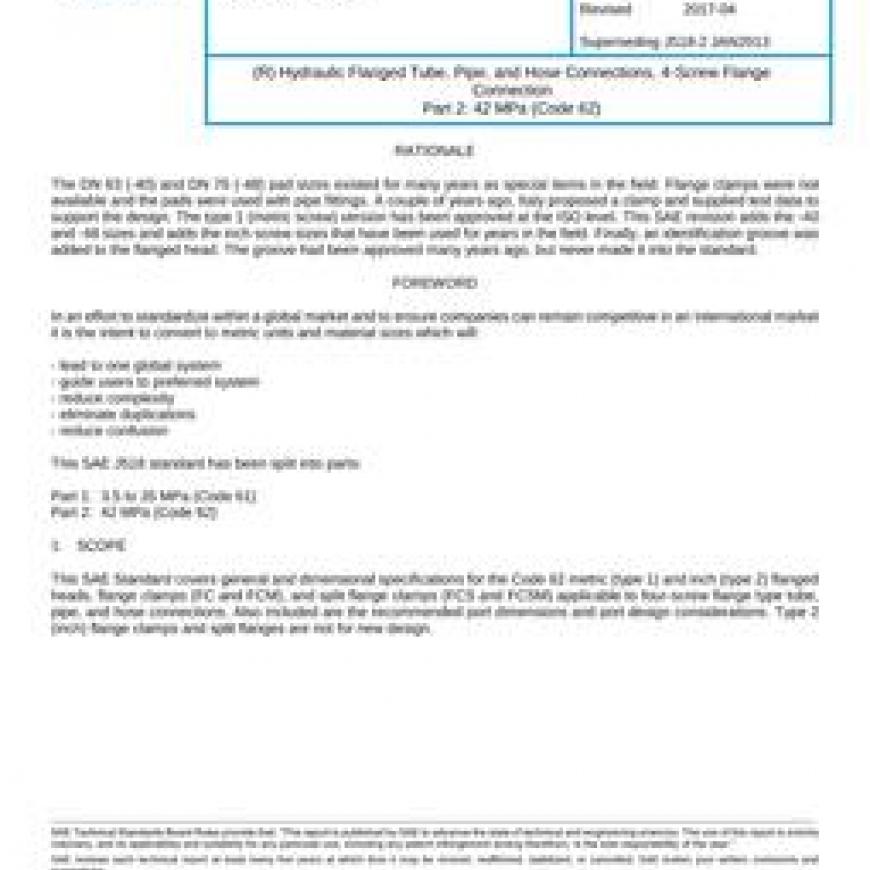

SAE J518/2_201704 covers general and dimensional specifications for the Code 62 metric (type 1) and inch (type 2) flanged heads, flange clamps (FC and FCM), and split flange clamps (FCS and FCSM) applicable to four-screw flange type tube, pipe, and hose connections. Also included are the recommended port dimensions and port design considerations. Type 2 (inch) flange clamps and split flanges are not for new design.

Product Details

Published: 04/13/2017 Number of Pages: 15 File Size: 1 file , 680 KB Redline File Size: 2 files , 3.5 MB
